Reel to Reel Clean Machine
Product Name

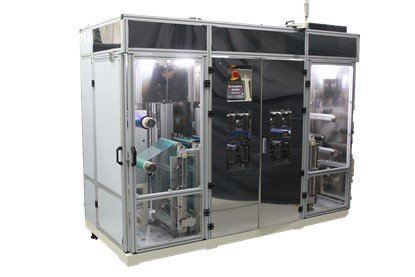

Reel to Reel Clean Machine
Model
RTRCM
Introduction
1. Double-sided contact clean machine.

2. This machine adopts PLC and HMI operation module.

3. This machine adopts anti-static system.

4.  A / B shaft can be used interchangeably.

5. The EPC automatic registration system.

6. HEPA fan filter system.

7. Speed Range:2-8M / min.

8. Maximum clean width:320mm, and the Maximum roll diameter:300mm.

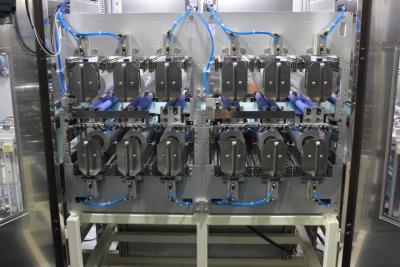

1. Double-sided contact cleaning, 24 cleaning rollers, 12 adheresive rollers.

2. Patented dust sticking mechanism to reduce dust emission.

3. The whole machine adopts aluminum extrusion and stainless steel as the main body of the machine. The aluminum alloy has been surface treated, which fully meets the requirements of clean rooms.

4. Customized equipment can be made according to customer requirements to meet all customer requirements for the process.

5. This machine adopts PLC programmable control and human-machine interface operation module.

6. This machine adopts industrial slide rail and FRASER static elimination system.

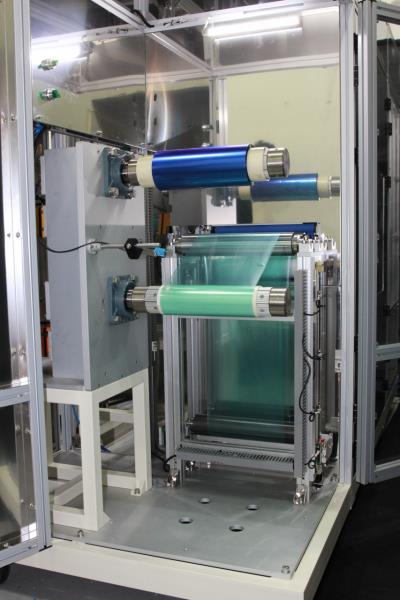

7. Rewinding and unwinding adopts air shaft, and A / B shaft can be used interchangeably.

8. The EPC automatic registration system is adopted for the take-up and rewinding, with an accuracy of +/- 0.1mm.

9. HEPA fan filter system is installed on the top of the material.

10.Speed Range: 2-8M / min.

11. The maximum cleaning width is 320mm, and the maximum roll diameter is 300mm.
